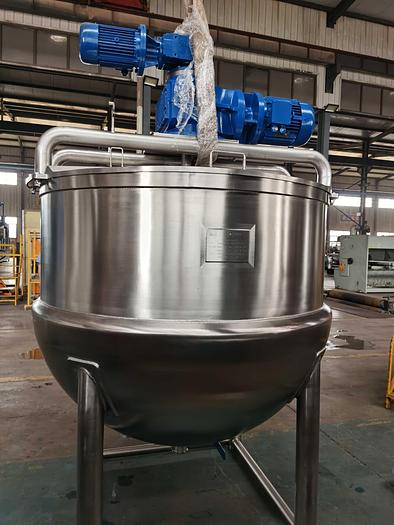

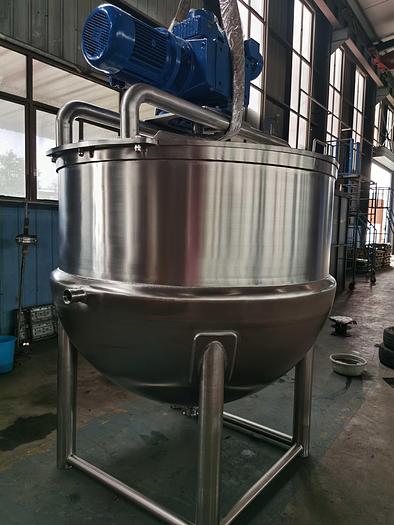

New 400 USG Steam Jacketed Dual Mixing Kettle in stock in Ontario, CA, USA

New 400 USG Steam Jacketed Dual Mixing Kettle in stock in Ontario, CA, USA

Contact us for price

Location:Ontario, CA

orCall +1(626)3202070

Description

*Hemispherical style kettle.

*Sanitary configuration.

*Constructed of stainless steel 316 type product contact areas, 304 for other parts.

*Steam jacket is ASME-U Stamped at 90 Psi and NB registered.  Equipped with steam in, condensate out.

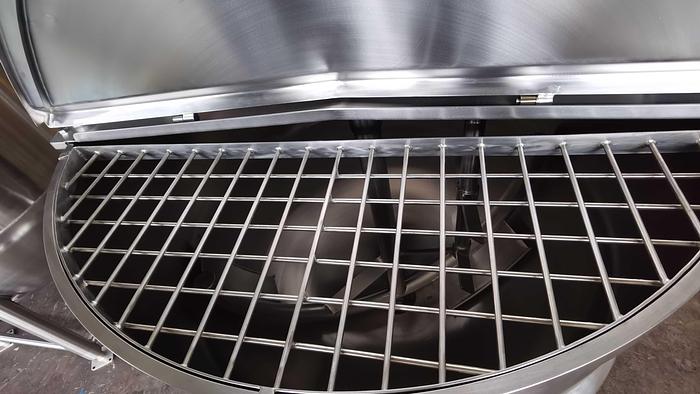

*With safety grate and flush mount RTD sensor

*Kettle body to have four legs configuration with flanged feet.

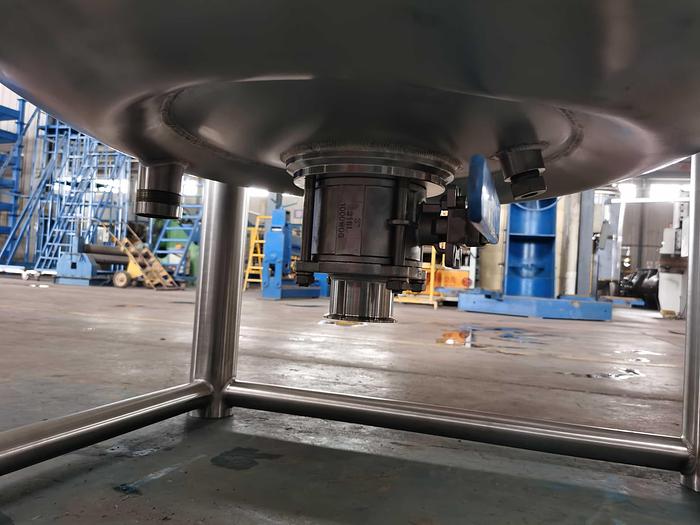

*Kettle body to have 3" center bottom flush mount ball valve discharge.

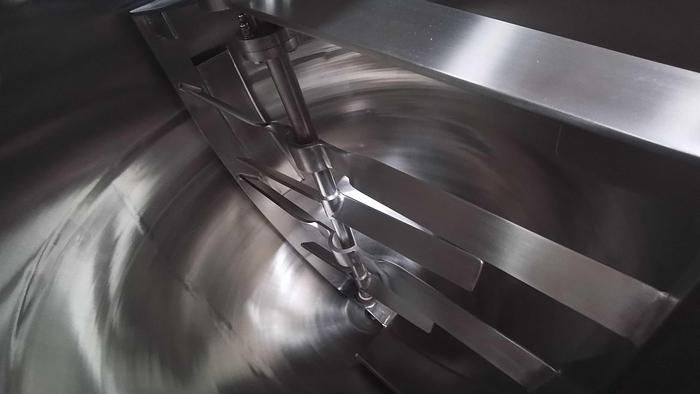

*Agitation is bridge mounted. scraping surface and paddle type.

*Heavy Duty drive

-7.5 HP three phase, 230/460V 60HZ UL listed Drive. Current rating: 230V 19.4A; 208V 21.5A

-4 HP three phase, 230/460V 60HZ UL listed Drive. Current rating: 230V 11A; 208V 12.2A

*Tri‐Clamp type additive ports.

*Stainless steel, hinged cover on both sides.

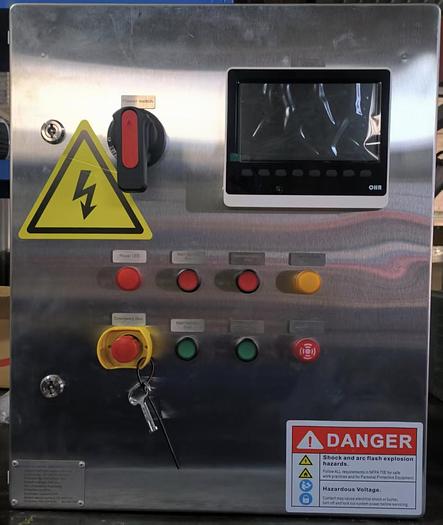

*Controller included, pre-wired using 230V three phase power.

*Digital temperature recorder, solenoid steam valve control feature.

*Safety grate interlock.

*Emergency Stop.

*Overcurrent protection.


Specifications

ManufacturerHongda
Model400 USG Kettle
Year2024
ConditionNew
Stock Number1
MaterialSS316L for food contact area, SS304 for other parts with #4 finish.
Heat transfer surfaceJacket rated at 90 Psi with ASME-U stamped and NB registered. CRN Optional.
After-sales service2 Year warranty
DriveUL listed drive
AgitatorMain agitator is scraper blade type, the second one is Paddle type.
ControllerInlcuded, digital temperature recorder, solenoid steam valve control feature.
CIP cleaningSpray balls included
DischargeFlush mount ball valve, Pneumatic operate optional
Termperature sensorFlush mount RTD sensor
SafetyWith safety grate.
Packing size67"*67"*96" 3086lbs
OptionalsBrake wheels, Steam regulating valve Controller
