200 USG mixing tank with inclined stir
200 USG mixing tank with inclined stir
Contact us for price
Location:Ontario, CA
orCall +1(626)3202070
Description

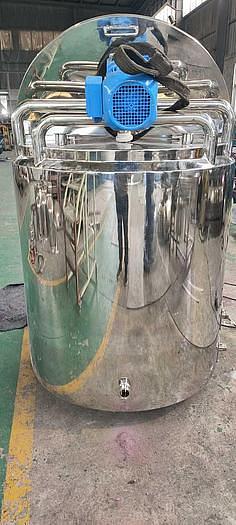

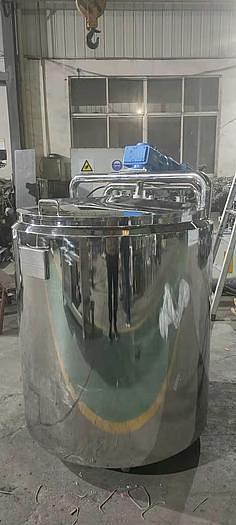

200 USG working capacity tank with inclined stir Constructed by SUS304 Single agitator Hot water jacket is rated at 75 Psi, Max. operating pressure is 14.9 PSI. Polyurethane 2" thick insulation jacket. Agitation is 2HP paddle type and bridge mounted. Tank Top: With double open hinged lids, CIP cleaning. Tank Bottom: Sloping bottom and side outlet. Legs: Adjustable stainless steel legs. Control box.
Specifications
| Manufacturer | Hongda |
| Model | Mixing tank |
| Year | 2022 |
| Condition | New |

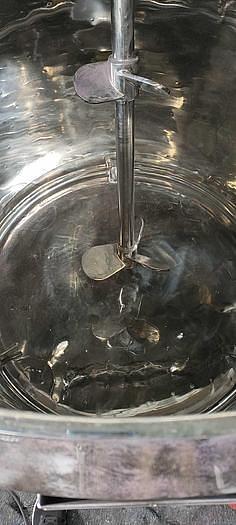

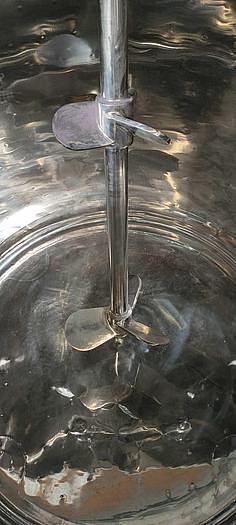

| Agitator | Inclined paddle type stir and bridge mounted. |
| Drive | 2HP drive |
| Capacity | 200USG working capacity |
| Jacket | Hot water jacket is rated at 75 Psi, Max. operating pressure is 14.9 PSI. |
| Polyurethane | 2" thick insulation jacket. |

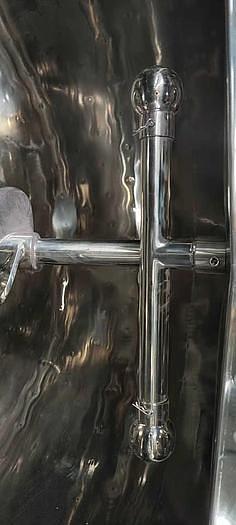

| CIP | Sprayballs |
| Legs | Adjustable stainless steel legs. |
