*Hemispherical style kettle.

*Sanitary configuration.

*Constructed of stainless steel 316 type product contact areas, 304 for other parts.

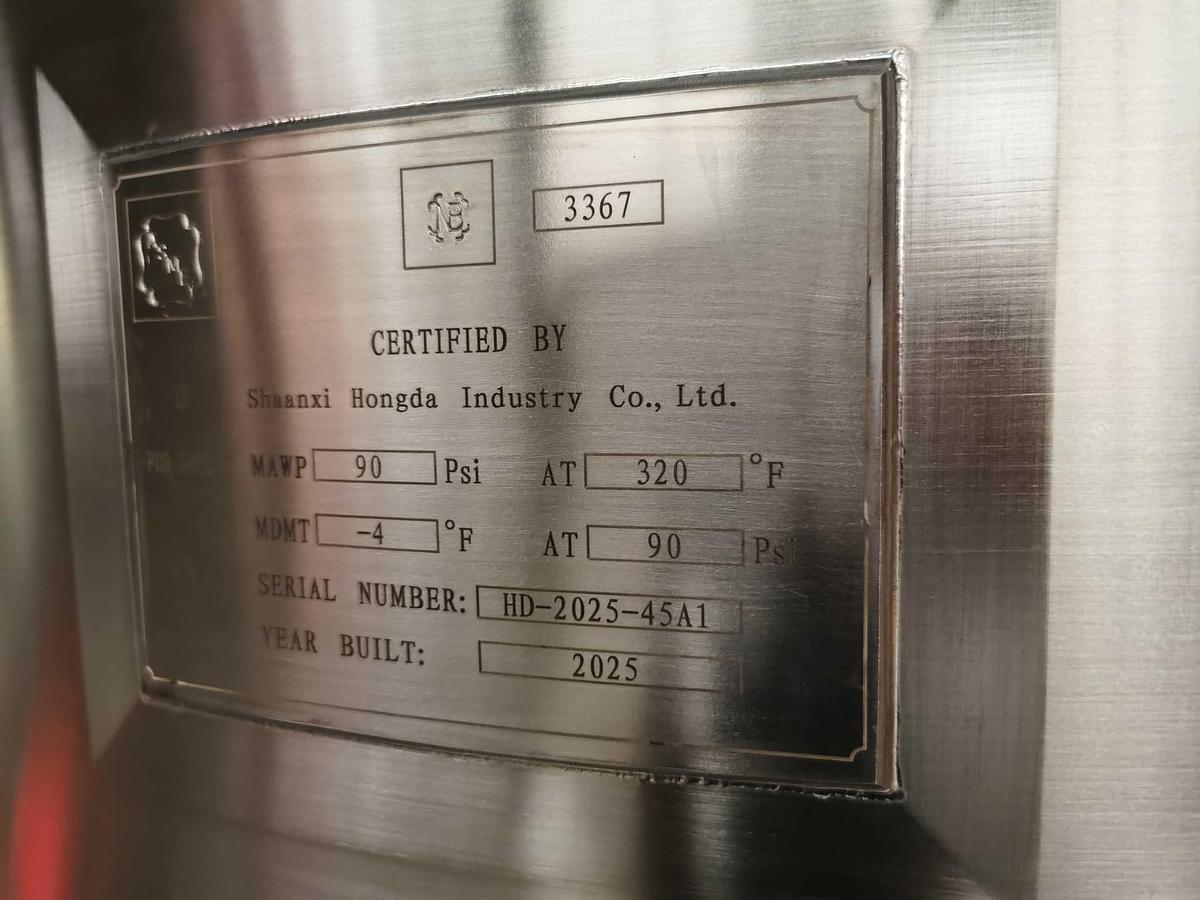

*Steam jacket is ASME-U Stamped at 90 Psi and NB registered. Equipped with steam in, condensate out.

*With safety grate and flush mount RTD sensor

*Kettle body to have four Legs configuration with flanged feet.

*Kettle body to have 3" center bottom flush mount ball valve discharge.

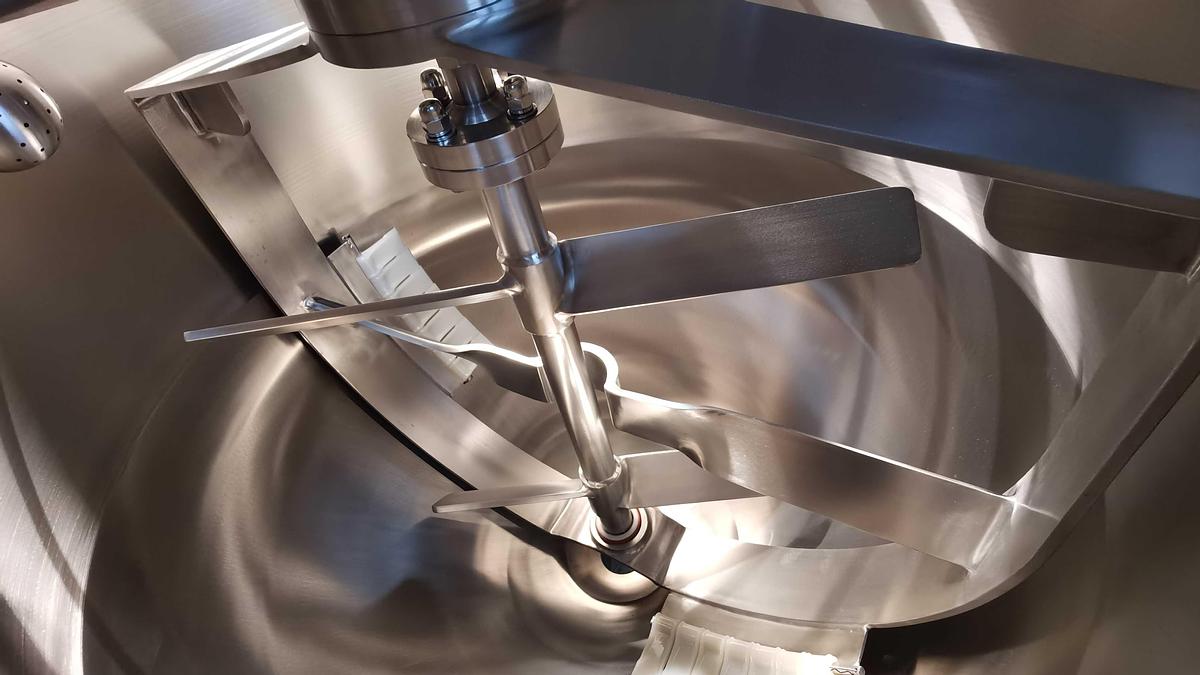

*Agitation is bridge mounted. scraping surface and paddle type.

*Heavy Duty drive

-3 HP three phase, 230/460V 60HZ UL listed Drive. Current rating: 230V 8.4A; 208V 9.3A

-2 HP three phase, 230/460V 60HZ UL listed Drive. Current rating: 230V 6A; 208V 6.6A

*Tri‐Clamp type additive ports.

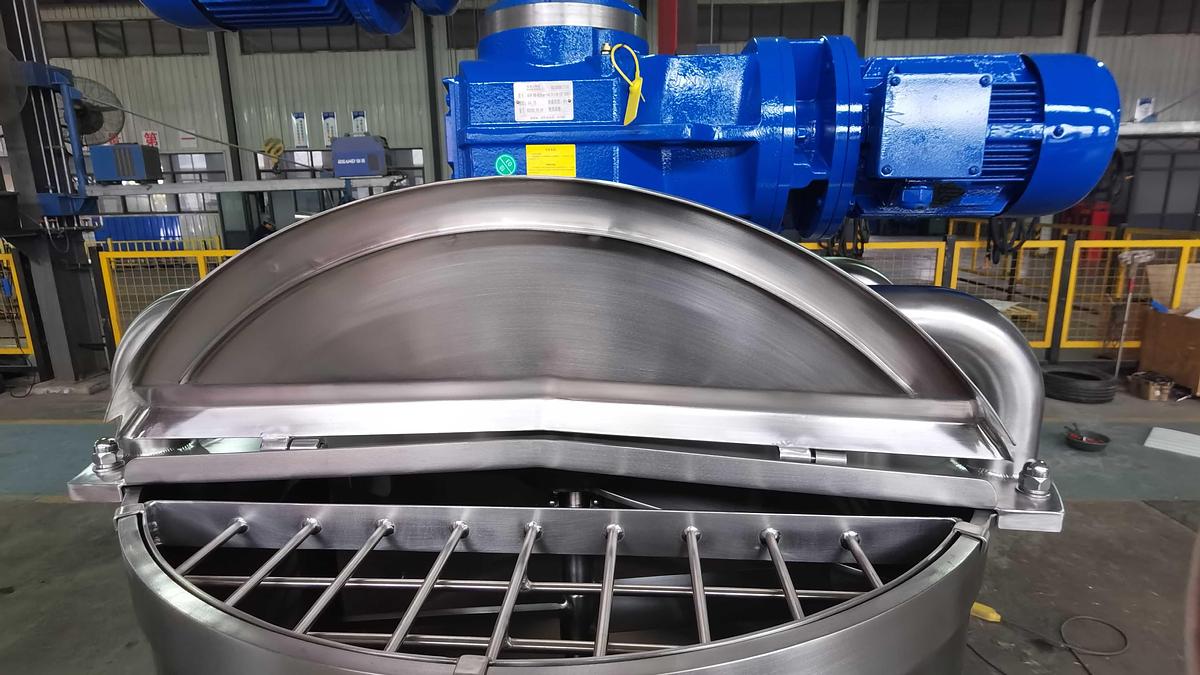

*Stainless steel, hinged cover on both sides.

*Controller included, pre-wired using 230V three phase power.

*Digital temperature recorder, solenoid steam valve control feature.

*Safety grate interlock.

*Emergency Stop.

*Overcurrent protection.

Manufacturer	Hongda
Model	100 USG
Year	2023
Condition	New
Serial Number	Kettle-100
Stock Number	2
Material	Stainless steel 316 for product contact area, 304 for other parts
Heat transfer surface	Jacket rated at 90 Psi with ASME-U stamped and NB registered. CRN Optional.
After-sales service	2 Year warranty
Surface treatment	Sanitary internal polished finish
Drive	UL listed drive
Agitator	Coaxial double agitators, Scraping and Paddle type.
Controller	Inlcuded, digital temperature recorder, solenoid steam valve control feature.
CIP cleaning	Spray balls included
Discharge	Flush mount ball valve, Pneumatic operate optional
Termperature sensor	Flush mount RTD sensor
Safety	With safety grate.
Packing size	51"51"93" 1653lbs
Optionals	Brake wheels, Steam regulating valve Controller

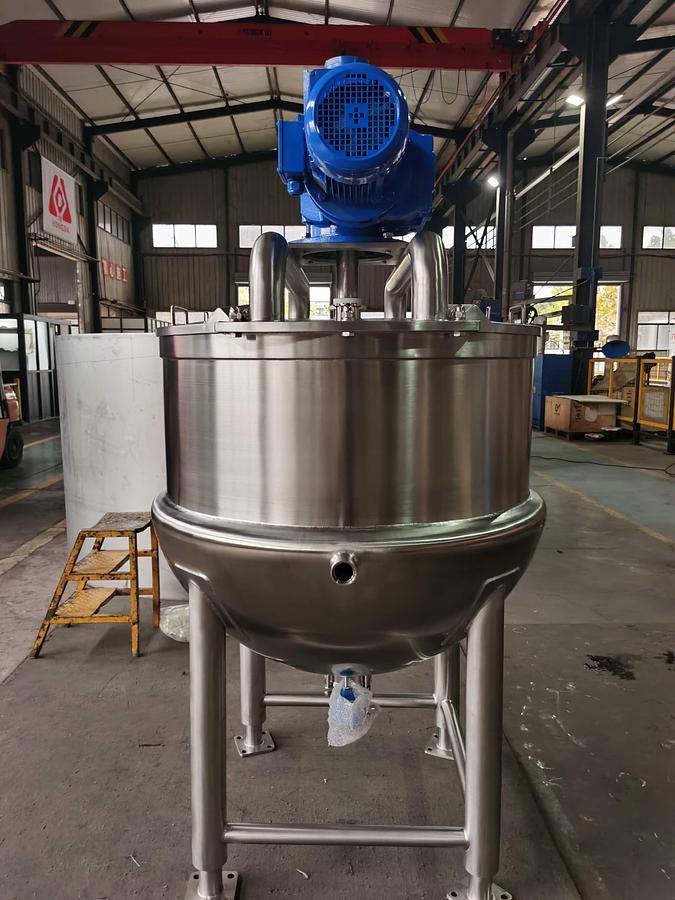

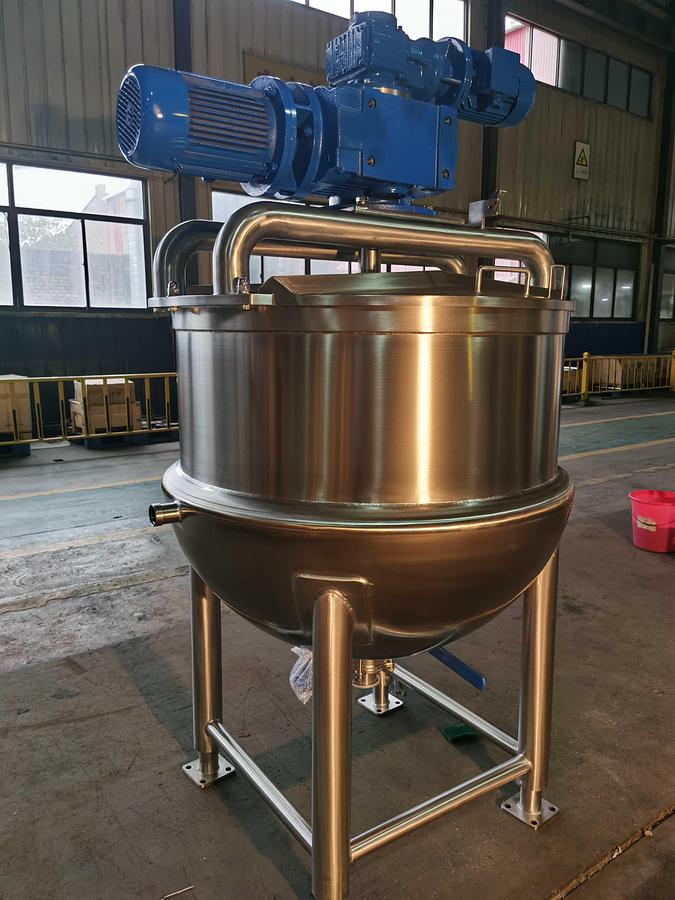

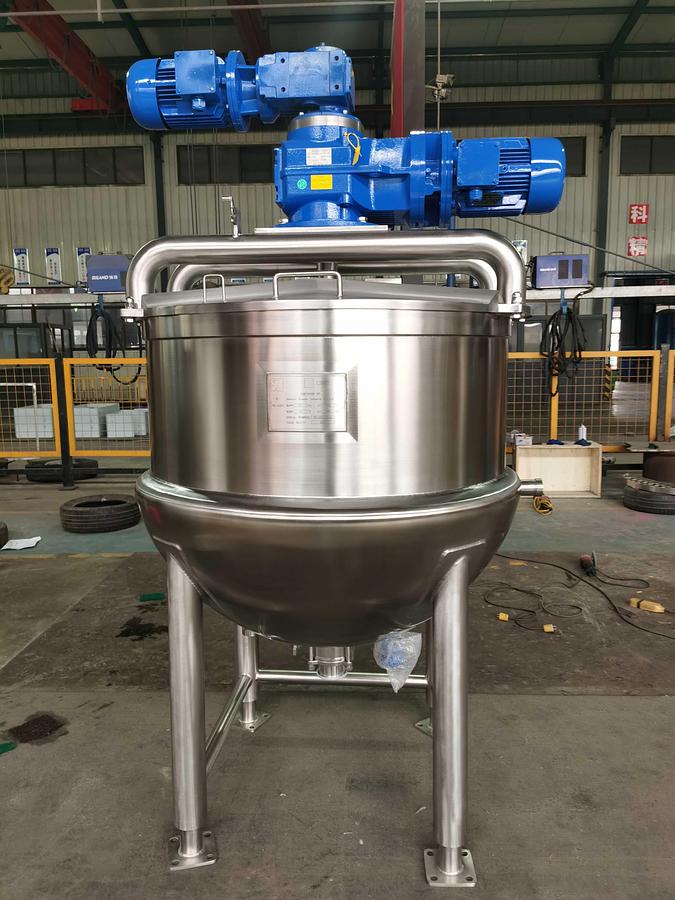

New 100 USG Steam Jacketed Dual Mixing Kettle in stock in Ontario, CA, USA
