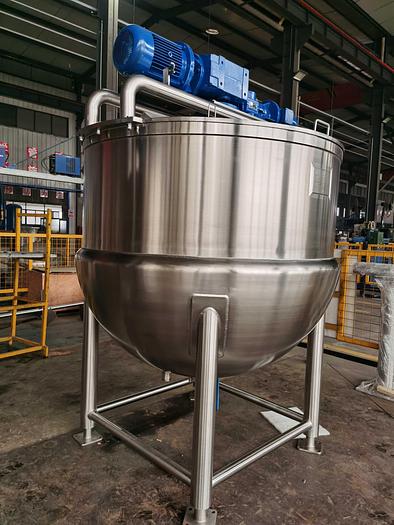

New 500 USG Steam Jacketed Dual Mixing Kettle in stock in Ontario, CA, USA
![500 Gallon steam jacketed mixing kettle in stock in CA](https://i.machineryhost.com/c4fa7aecedac73641320d24d5bf3bf38/030f2a8dcc3ebb5c65c95b3463989e44/large-500-gallon-steam-jacketed-mixing-kettle-in-stock-in-ca.jpg)
New 500 USG Steam Jacketed Dual Mixing Kettle in stock in Ontario, CA, USA
Contact us for price
Location:Ontario, CA
Description
*Hemispherical style kettle.
*Sanitary configuration.
*Constructed of stainless steel 316 type product contact areas, 304 for other parts.

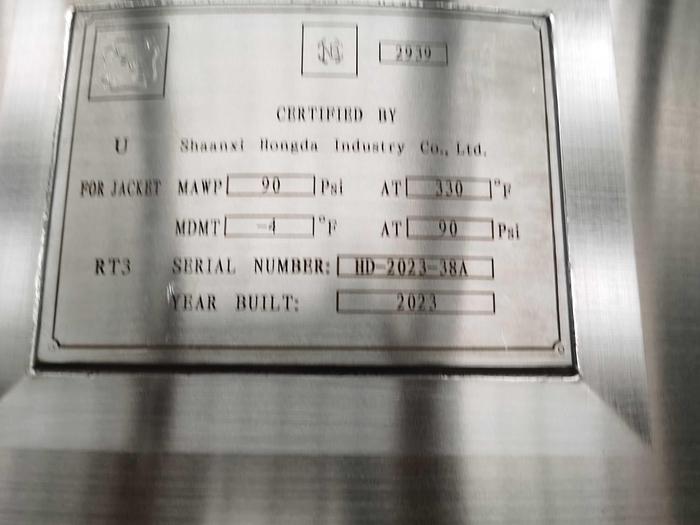

*Steam jacket is ASME-U Stamped at 90 Psi and NB registered. Equipped with steam in, condensate out.

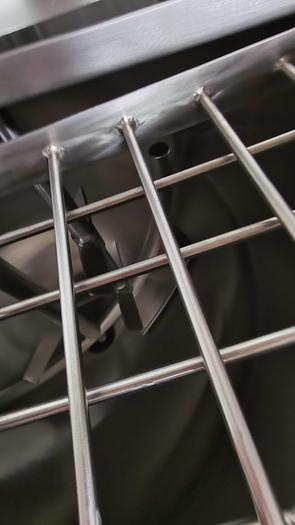

*With safety grate and flush mount RTD sensor
*Kettle body to have Tri‐Leg configuration with flanged feet.
*Kettle body to have 3" center bottom flush mount ball valve discharge.

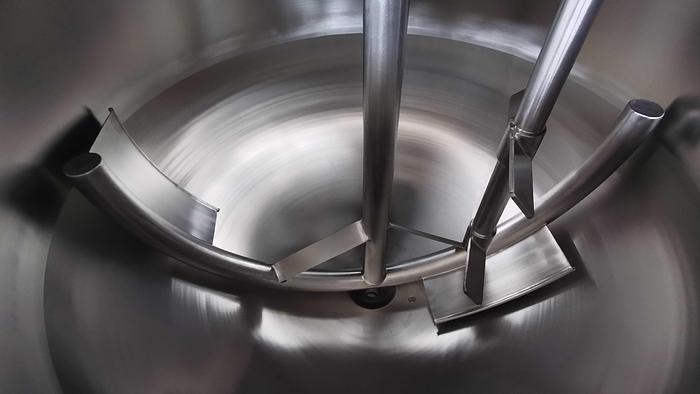

*Agitation is bridge mounted. scraping surface and paddle type.
*Heavy Duty drive
-7.5 HP three phase, 230/460V 60HZ UL listed Drive. Current rating: 230V 19.4A; 208V 21.5A
-4 HP three phase, 230/460V 60HZ UL listed Drive. Current rating: 230V 11A; 208V 12.2A
*Tri‐Clamp type additive ports.
*Stainless steel, hinged cover on both sides.

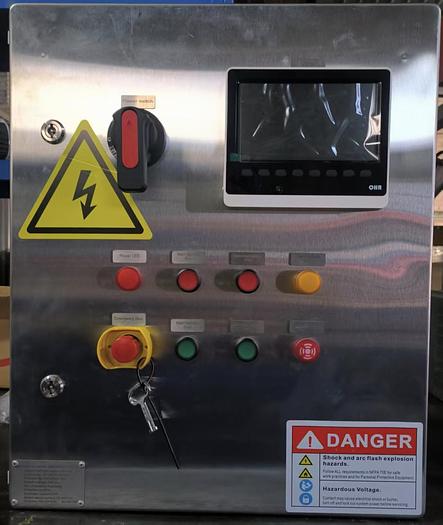

*Controller included, pre-wired using 230V three phase power.
*Digital temperature recorder, solenoid steam valve control feature.
*Safety grate interlock.
*Emergency Stop.
*Overcurrent protection.
Specifications
Manufacturer | Hongda |
Model | Kettle |
Year | 2023 |
Condition | New |
Stock Number | 1 |
Material | SS316L for food contact area, SS304 for other parts with #4 finish. |
Heat transfer surface | Jacket rated at 90 Psi with ASME-U stamped and NB registered. CRN Optional. |
After-sales service | 2 Year warranty |
Surface treatment | Sanitary internal polished finish |
Drive | UL listed drive |
Agitator | Coaxial double agitators, Scraping and Paddle type. |
Controller | Inlcuded, digital temperature recorder, solenoid steam valve control feature. |
CIP cleaning | Spray balls included |
Discharge | Flush mount ball valve, Pneumatic operate optional |
Termperature sensor | Flush mount RTD sensor |
Safety | With safety grate. |
Packing size | 71"*71"*100" 3306lbs |
Optionals | Brake wheels, Steam regulating valve Controller |
