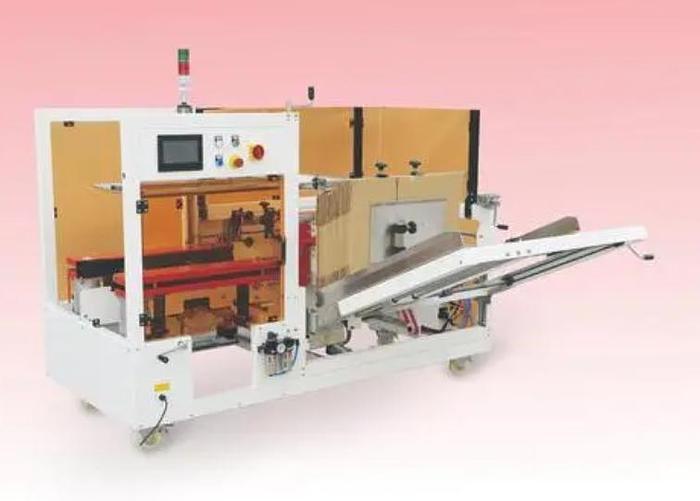

SDW-K20TX Automatic Case Erector

SDW-K20TX Automatic Case Erector
Contact us for price
Location:Ontario, CA
or
Call +1(626)3202070
Description
Machine Features
- The equipment is designed and manufactured to meet the requirements of the production line process and layout, with an elegant appearance and excellent manufacturing quality.
- Low power and water consumption, easy and quick operation, adjustment, and maintenance.
- The machine has built-in safety protection functions, such as overload protection and safety doors.
- Alarm functions for no tape or no carton.
- Carton storage mechanism: Can hold approximately 50 flat cartons at a time (depending on carton thickness), with the ability to replenish at any time.
Electrical Configuration
- PLC Control: Siemens
- Contactors: Schneider
- Photoelectric Sensors: Heyi
- Proximity Sensors: SICK
- Push Button Switches: Siemens "APT"
- HMI (Human-Machine Interface): Xinje
- Cylinders: Airtac
- Motors: Taibang
Workflow
- Suck carton → Open carton → Fold front and back flaps → Fold left and right flaps → Seal bottom.
Specifications
Condition | New |
Stock Number | 28 |
Power Supply | 110Vac 50/60Hz 1-phase 400W |
Air Pressure | 71-85 psi |
Air Consumption | 7.06 SCFM |
Machine Dimensions | L80.7" × W76.8" × H59.1" |
Machine Weight | 882 lbs |
Applicable Cartons | According to the specification list |
Tape Width | 1.9 - 2.8 in |
Forming Speed | ≤8-10 cartons/minute (depending on carton size) |
Box Opening Method | Vertical forming |
Table Height | 25.6 in |
