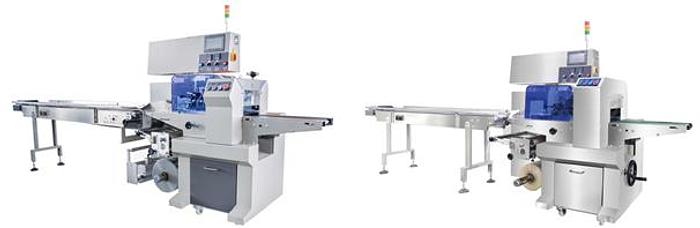

VT-160X Down-Film Flow Wrapper

VT-160X Down-Film Flow Wrapper

Contact us for price

Location:Ontario, CA

orCall +1(626)3202070

Description

  1. All servo Panasonic control, the bag length is set to cut, no need to adjust the empty walk, one step in place, save time and save film.
  2. Realize full automatic induction bag length.
  3. Man-machine interface, PLC computer control system runs more stable and canadjust any parameters without stopping.
  4. Fault self diagnosis function, fault display is clear at a glance.
  5. High sensitivity photoelectric eye color mark tracking, digital input sealing position,make the sealing and cutting position more accurate.
  6. Positioning stop function, no sticky knife, no waste envelope.
  7. Touch screen display in Chinese and English is intuitive and simple.
  8. It can store many groups of parameters, and it is easier to replace the variety.
  9. Using the servo motor to pull the film, the positioning is more accurate.
  10. An independent temperature control system with an accuracy of about 1 degreescentigrade.
  11. The horizontal and vertical sealing temperature can be controlled independently, andit can be well applied to various composite films, OPP films and other packagingmaterials.
  12. The packaging styles are varied, such as back sealing, corner inserting, bag linking, punching, etc.
  13. Production of bags, sealing, packaging, printing date completed at one time.
Show All

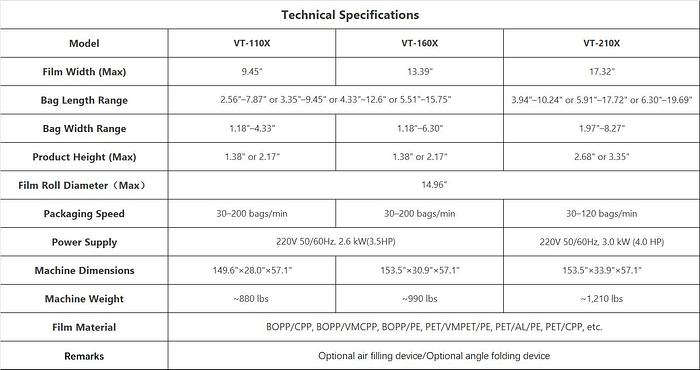

Specifications

ManufacturerHongda
ModelVT-160X
Year2024
ConditionNew
Control panelPLC control
Optional accessoriesBelt material conveyor
Optional accessories 2End sealing drag chain
Optional accessories 3Auxiliary material feeding device
Optional accessories 4Material cut prevent device
Optional accessories 5Hole punching
Optional accessories 6Angle folding device
Optional accessories 7Date printer
Optional accessories 8Labelling machine
Optional accessories 9Thermal transfer code prenter
Optional accessories 10Air charging system
Optional accessories 11Cutting stop
