500 Gallon Triple Agitation Mixing Tank
500 Gallon Triple Agitation Mixing Tank
Contact us for price
Location:California
orCall +1(626)3202070
Description

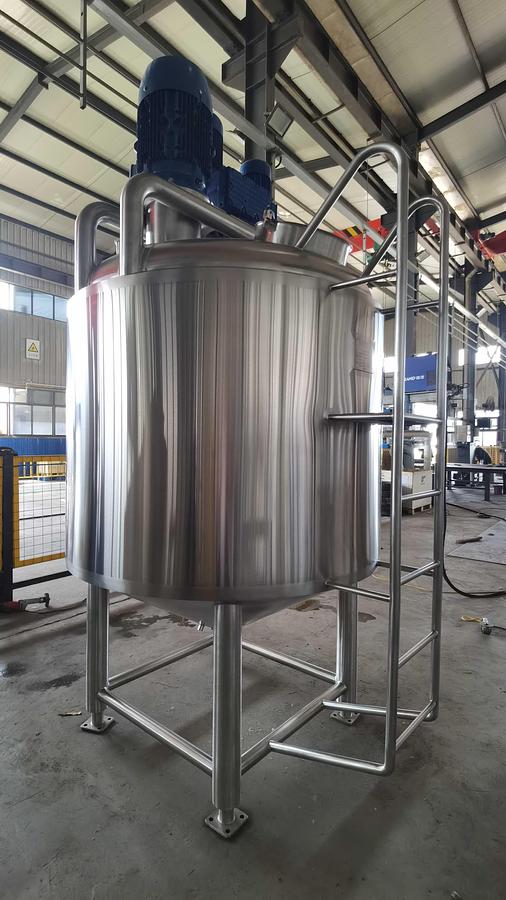

500 Gallon high shear mixing tank Motor：UL listed drive. Material：SUS316L for prodcut contact surface. SUS304 for non-prodcut contact surfare.
Jacket: ASME-U stamped jacket rated at 75 Psi with NB register.
Insulation: 2" rockwool insulation with outter sheathing

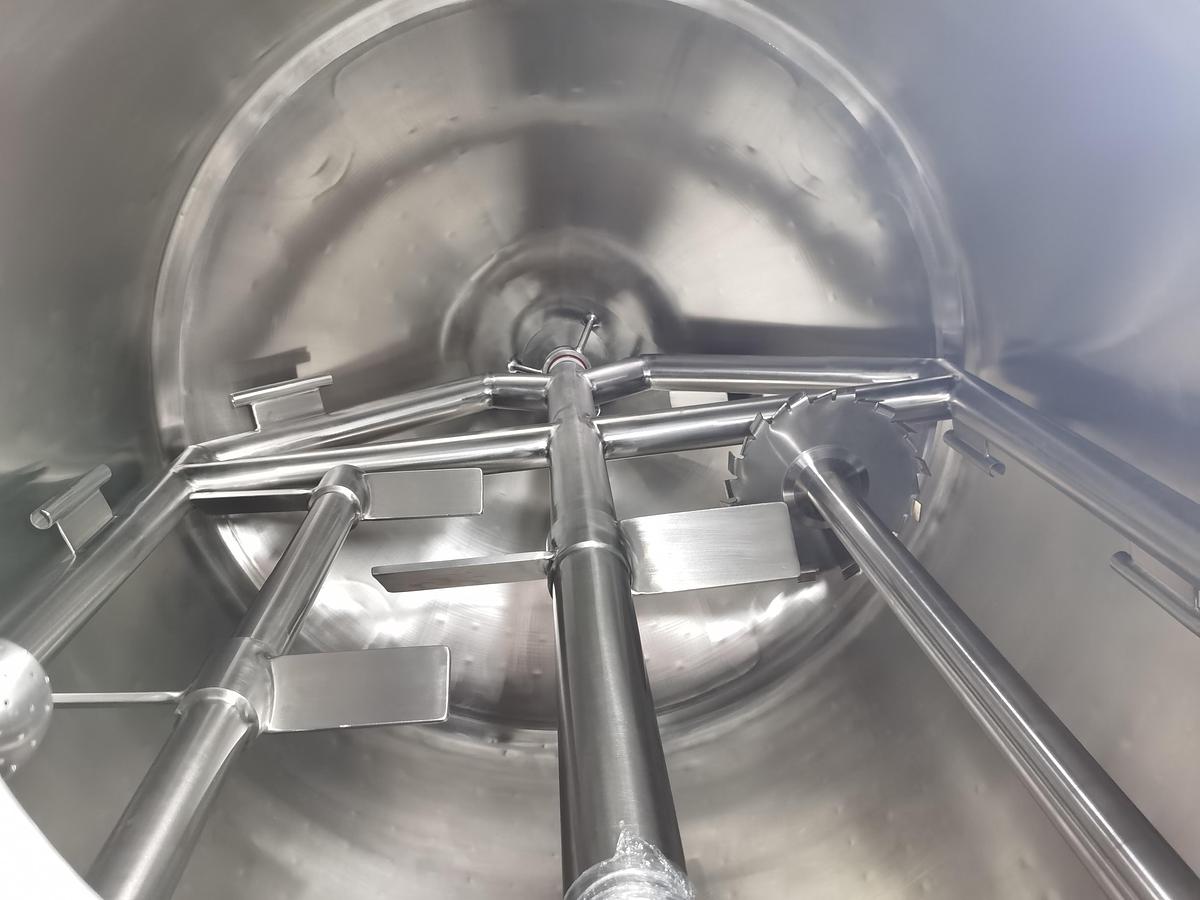

Triple agitation: Main agitator is scraper balde type,7.5HP 30RPM. Offset paddle type agitator, 3HP 56RPM. The third agitator is high shear disperser type with 30HP 1750RPM. Finish：#4 finish.
CIP: WIth 2 Spray balls. Legs：Adjustable stainless steel legs
Specifications
| Manufacturer | Hongda |
| Model | Mixing tank |
| Year | 2024 |
| Condition | New |
| Stock Number | 1 |
| Interior construction | 316L Stainless Steel, with #4 finish. |
| Exterior construction | 304 Stainless Steel, with #4 finish. |
| Heat transfer surface | Side and bottom stainless steel dimple jacket rated for 75 psi. |
| Insulation | Rock wool 2" thick. |
| Vertical agitation | Triple agitators. |
| Motor | UL listed brand |
| Tank top | Dished head with manway, CIP cleaning. |
| Tank bottom | Conical with 15 or 30 degree slope and center outlet, flat bottom structure optional. |
| Inlet/outlet ports | Sanitary clamp connections. |
| Legs | Adjustable stainless steel legs. |
| Delivery time | In stock |

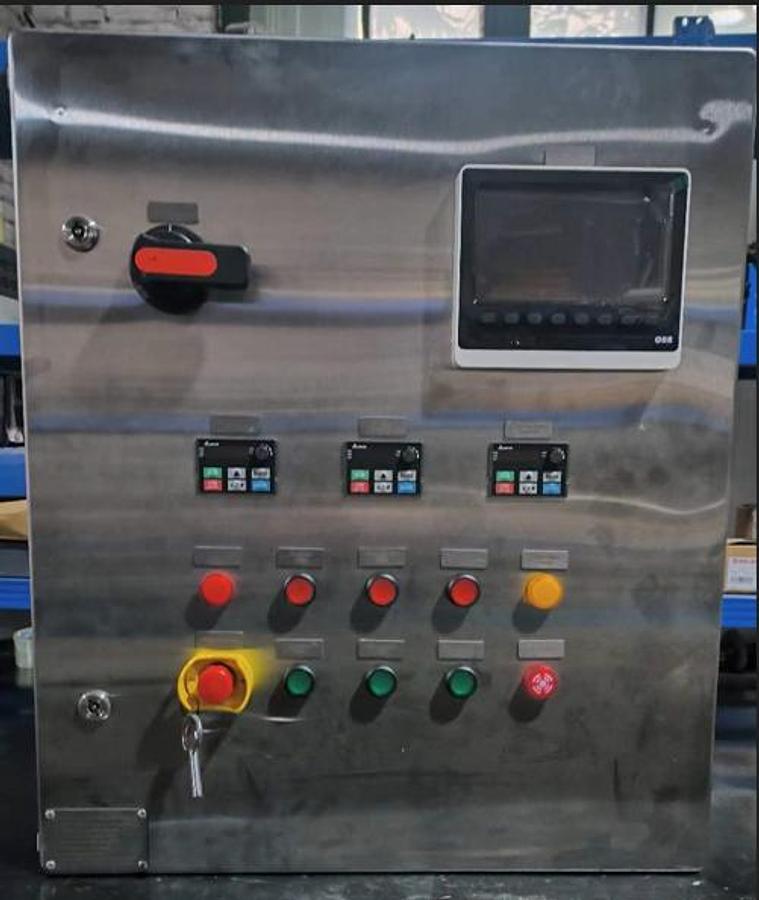

| Packing size | Machine 134"*69"*77" 3527lbs Controller: 32"*24"*22" 99lbs |
| Ladder | With ladder |
