New 300 USG Steam Jacketed Dual (Offset) Mixing Kettle in stock in Ontario, CA, USA

New 300 USG Steam Jacketed Dual (Offset) Mixing Kettle in stock in Ontario, CA, USA

Contact us for price

Location:Ontario, CA

orCall +1(626)3202070

Description

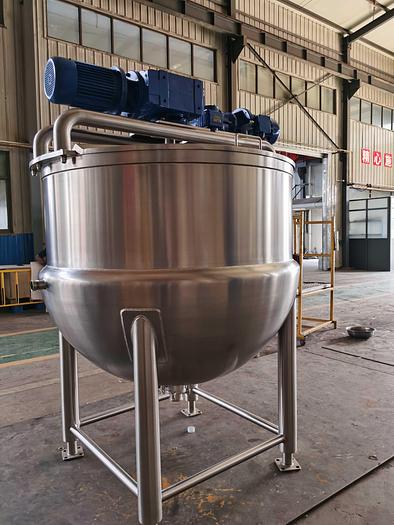

*Hemispherical style kettle.

*Sanitary configuration.

*Constructed of stainless steel 316 type product contact areas, 304 for other parts.

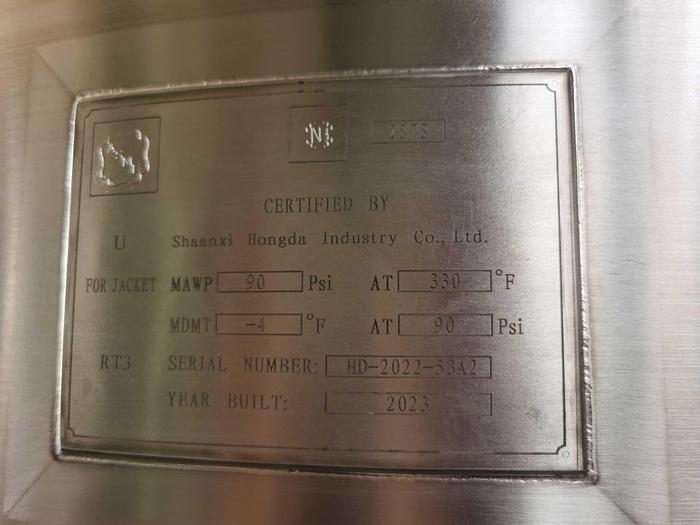

*Steam jacket is ASME-U Stamped at 90 Psi and NB registered.  Equipped with steam in, condensate out.

*With safety grate and flush mount RTD sensor

*Kettle body to have four legs configuration with flanged feet.

*Kettle body to have 3" center bottom flush mount ball valve discharge.

*Agitation is bridge mounted. scraping surface and paddle type.

*Heavy Duty drive

-5 HP three phase, 230/460V 60HZ UL listed Drive. Current rating: 230V 14.5A; 208V 16A

-3 HP three phase, 230/460V 60HZ UL listed Drive. Current rating: 230V 8.4A; 208V 9.3A

*Tri‐Clamp type additive ports.

*Stainless steel, hinged cover on both sides.

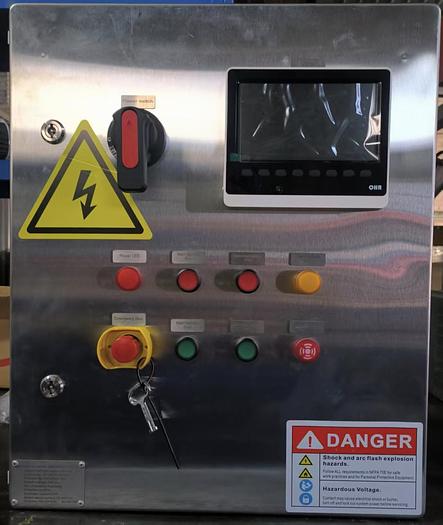

*Controller included, pre-wired using 230V three phase power.

*Digital temperature recorder, solenoid steam valve control feature.

*Safety grate interlock.

*Emergency Stop.

*Overcurrent protection.


Specifications

ManufacturerHongda
ModelKettle
Year2023
ConditionNew
Stock Number1
MaterialStainless steel 316 for product contact area, 304 for other parts
Heat transfer surfaceJacket rated at 90 Psi with ASME-U stamped and NB registered. CRN Optional.
After-sales service2 Year warranty
Surface treatmentSanitary internal polished finish
AgitatorOne agitator is scraper blade type, the other is offset Paddle type.
ControllerInlcuded, digital temperature recorder, solenoid steam valve control feature.
CIP cleaningSpray balls included
DischargeFlush mount ball valve, Pneumatic operate optional
Termperature sensorFlush mount RTD sensor
SafetyWith safety grate.
Packing size71"*71"*99" 3307lbs
OptionalsBrake wheels, Steam regulating valve Controller
