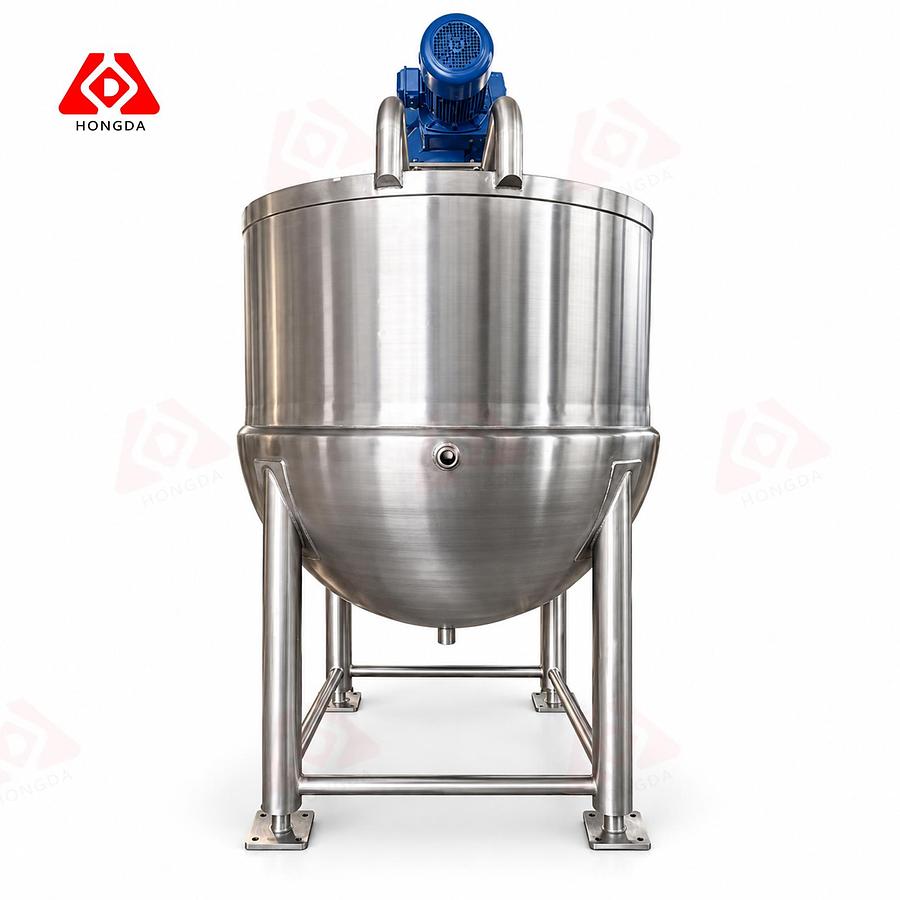

600 gallon mixing kettle
600 gallon mixing kettle
Contact us for price
Location:Ontario, CA
Description

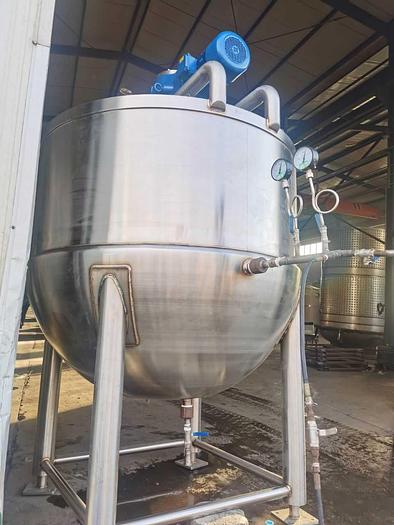

*Hemispherical style kettle.
*Sanitary configuration.
*Constructed of stainless steel 316 type product contact areas, 304 for other parts.
*Steam jacket is ASME-U Stamped at 90 Psi and NB registered. Equipped with steam in, condensate out.
*With safety grate and flush mount RTD sensor
*Kettle body to have four legs configuration with flanged feet.
*Kettle body to have 4" center bottom flush mount ball valve discharge.

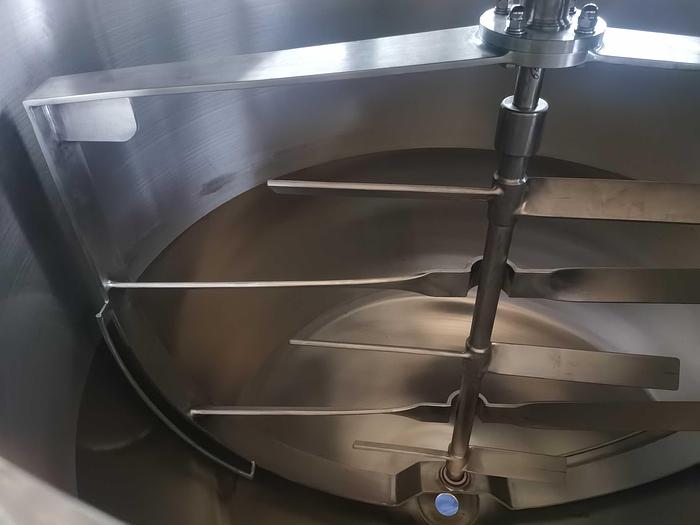

*Agitation is bridge mounted. scraping surface and paddle type.
*Heavy Duty drive
-10 HP three phase, 230/460V 60HZ UL listed Drive.
-5 HP three phase, 230/460V 60HZ UL listed Drive.
*Tri‐Clamp type additive ports.
*Stainless steel, hinged cover on both sides.

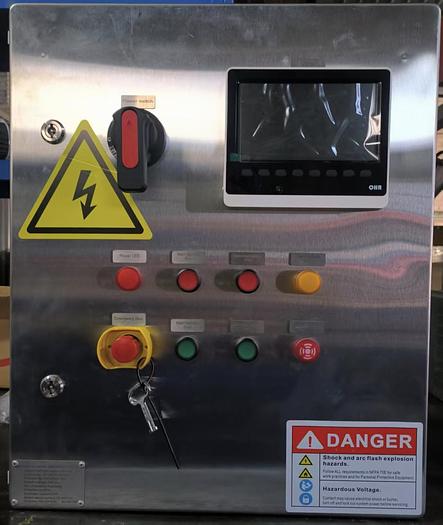

*Controller included, pre-wired using 230V three phase power.
*Digital temperature recorder, solenoid steam valve control feature.
*Safety grate interlock.
*Emergency Stop.
*Overcurrent protection.
Specifications
| Manufacturer | Hongda |
| Model | Kettle |
| Year | 2024 |
| Condition | New |
| Stock Number | 0 |
| Material | SS316L for food contact area, SS304 for other parts with #4 finish. |
| Heat transfer surface | Jacket rated at 90 Psi with ASME-U stamped and NB registered. CRN Optional. |
| After-sales service | 2 Year warranty |
| Surface treatment | Sanitary internal polished finish |
| Drive | UL listed drive |
| Agitator | Coaxial double agitators, Scraping and Paddle type. |
| Controller | Inlcuded, digital temperature recorder, solenoid steam valve control feature. |
| CIP cleaning | Spray balls included |
| Discharge | Flush mount ball valve, Pneumatic operate optional |
| Termperature sensor | Flush mount RTD sensor |
| Safety | With safety grate. |
| Optionals | Brake wheels, Steam regulating valve Controller |
