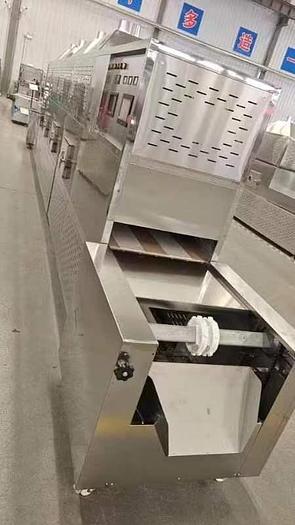

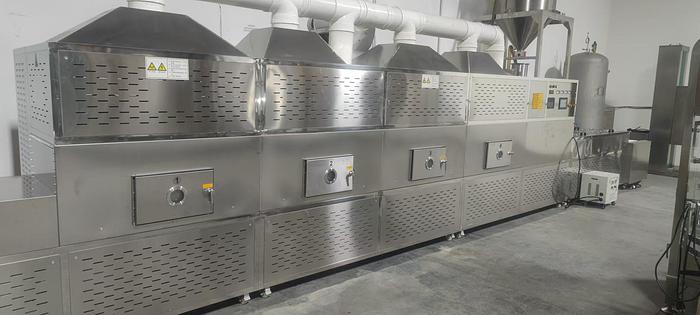

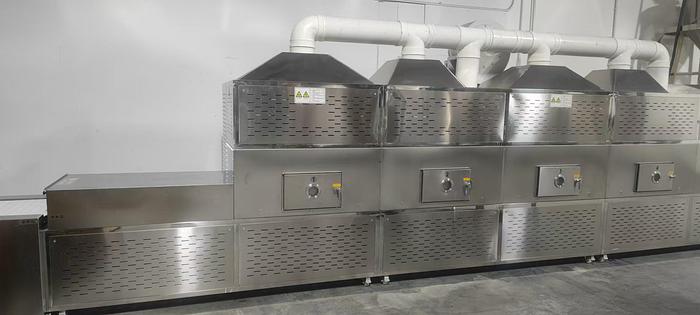

Tunnel type Continues Microwave Drying and Sterilization Equipment

Description:

This equipment is a new type of microwave heating device with multiple functions, including drying, sterilization, heating, enzyme deactivation, puffing, and defrosting. It can be widely applied in industries such as food, building materials, chemicals, ceramics, pharmaceuticals, rubber, paper products, refractory materials, agricultural by-products, leather, and textiles.

During operation, the equipment does not generate high ambient temperatures, smoke, or noise. It produces no wastewater, exhaust gas, or waste materials, making it an ideal choice for enterprises and factories looking to upgrade and replace high-energy-consuming, high-pollution equipment.

The equipment consists of several heating units, each equipped with multiple magnetrons working together. Its features include flexible power options, fast and uniform heating, high efficiency, energy savings, advanced technology, simple operation, safety, and harmlessness. The magnetrons are cooled by air (or water cooling).

Working Principle

When the equipment is in operation, the generator produces microwaves, which are transmitted into the heater through the energy feeding device. The material is delivered to the heater by the transmission system. At this stage, the moisture within the material evaporates under the influence of microwave energy and is expelled through the dehumidification system, achieving the purpose of heating and sterilization.

Tunnel type Continues Microwave Drying and Sterilization Equipment Spacification:

Model:SD-20HMV-4X

Power input: Three-phase five-wire 230V±10% 60Hz

Total power of equipment:≥30KW

Microwave output power:≥20KW

Material: SS304

Transmission mode: Belt drive

Capacity: 200kg/h

Speed: Conveyor 0.3 ~ 6 m/min (adjustable)

Magnetron input current: 0 ~ 7A for each magnetron (1kw for each microwave tube)

Magnetron output current: 0.28 ~ 0.3A for each magnetron

Working environment: Ambient temperature: -5 ~ 45℃; Relative humidity: ≤60%

Equipment structure：

Microwave sterilizer

Cooling system

Material handling system

Temperature control system

Safety protection system

Observation window power off protection system

Wire fire insulation

Fire insulation system

Independent rear power rack

Moisture and heat exhaust fan (explosion-proof)

Contact us for a quote!
