500 gallon mixing kettle SS304 mateiral with chill jacket
500 gallon mixing kettle SS304 mateiral with chill jacket
Contact us for price
Location:Ontario, CA
Description
*Hemispherical style kettle.
*Sanitary configuration.
*Constructed of stainless steel 304.
*Chill jacket
*Kettle body to have four legs configuration with flanged feet.
*Kettle body to have 3" center bottom flush mount ball valve discharge.
*Agitation is bridge mounted. scraping surface and paddle type.
*Heavy Duty drive
-7.5 HP three phase, 230/460V 60HZ UL listed Drive. Current rating: 230V 19.4A; 208V 21.5A
-4 HP three phase, 230/460V 60HZ UL listed Drive. Current rating: 230V 11A; 208V 12.2A
*Tri‐Clamp type additive ports.
*Stainless steel, hinged cover on both sides.

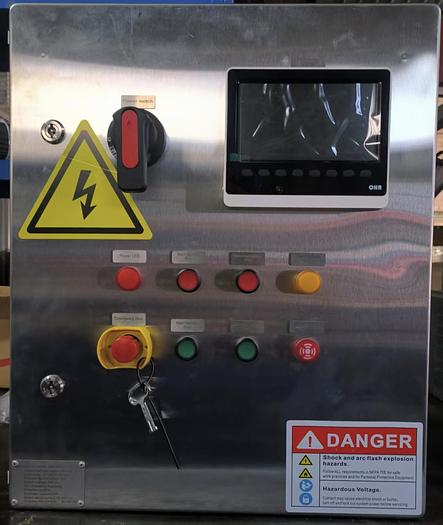

*Controller included, pre-wired using 230V three phase power.
*Digital temperature recorder, solenoid steam valve control feature.
*Safety grate interlock.
*Emergency Stop.
*Overcurrent protection.
Specifications
| Manufacturer | Hongda |
| Model | Kettle |
| Year | 2025 |
| Condition | New |
| Stock Number | 0 |
| Material | SS304 for other parts with #4 finish. |
| Jacket | Chill jacket |
| After-sales service | 2 Year warranty |
| Surface treatment | Sanitary internal polished finish |
| Drive | UL listed drive |
| Agitator | Mian agitation is scraping type, come with the offset Paddle type agitator |
| CIP cleaning | Spray balls included |
| Discharge | Flush mount ball valve, Pneumatic operate optional |
| Safety | With safety grate. |
| Packing size | 71"*71"*100" 3306lbs |
| Optionals | Brake wheels, Steam regulating valve Controller |
| Delivery time | 3 months |
