2025 Hongda Automatic Vertical Packaging Machine
2025 Hongda Automatic Vertical Packaging Machine
Contact us for price
Location:Ontario, CA
or
Call +1(626)3202070
Description
Main Equipment

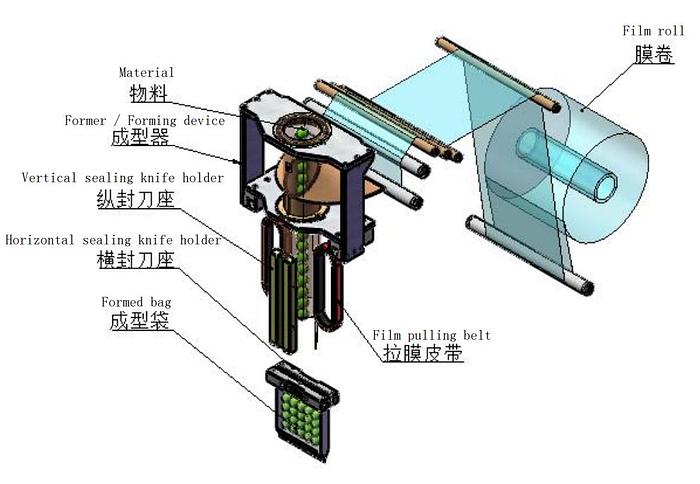

- Frame: Made of 304 stainless steel with sandblasted surface treatment.
- Central sealing width: 0.5 in, tooth pitch: 0.1 in, knife holder length: 12.6 in
- Horizontal sealing width: 0.5 in, tooth pitch: 0.1 in, knife holder length: 8.7 in
- Standard serrated cutter
- Fixed former bracket
- full-servo control system, 7-inch resistive touchscreen
- Double-sided film pulling
- Exhaust device (sponge exhaust system)

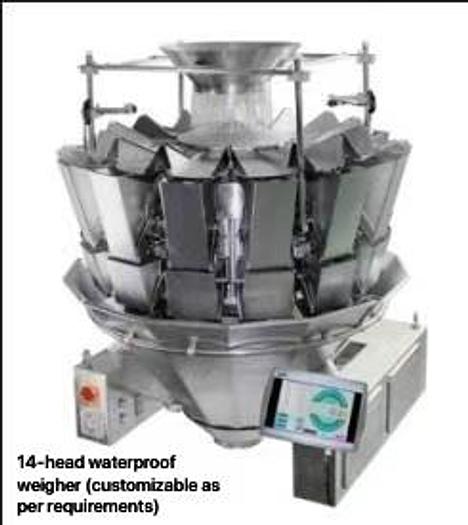

Included 14-head waterproof weigher (customizable as per requirements)
- Weighing range: 0.53~105.8 oz
- Accuracy class: X(2)
- Maximum speed: 70 times/min
- Power requirement: 110V, 50/60Hz, 1.5kW
- Hopper capacity: 101.4 fl oz
- Packaging dimensions: 56.54 *42.76 *54.65 in

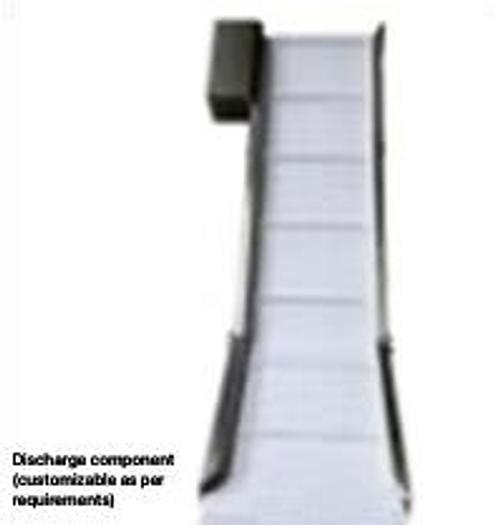

Included discharge component (customizable as per requirements)
- Conveying speed: 3.3-98.43ft/min
- Power: 120W
- Voltage: AC single-phase110V, 50Hz
Included combination scale platform
- Material: 304 stainless steel
- Inclined ladder
- Platform with 4 in kick plate
Optional Z-type elevator
- Material: 304 stainless steel
Optional combination scale platform
- Material: 304 stainless steel
- Inclined ladder
- Platform with 4 in kick plate
Specifications
| Manufacturer | Hongda |
| Model | Automatic Vertical Packaging Machine |
| Year | 2025 |
| Condition | New |
| Stock Number | 2 |
| Packaging speed (bags/min) | 20-120 bags/min |
| Packaging film width (mm) | 8–16.5 in |
| Bag size (mm) | Length: 1.97–10.83 in, Width:3.54–7.87 in |
| Total power (kW) | 4.9 kW |
| Motor rated total power (kW) | 2.55 kW |
| Heating rated total power (kW) | 2.35 kW |
| Net weight (kg) | 617.29 lb |

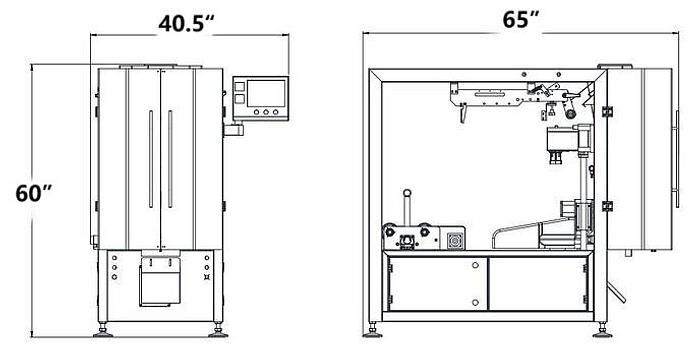

| Machine dimensions (L×W×H) (mm) | 64.96 * 40.55 * 55.91 in |
| Power supply | 110V 50Hz |
| Packaging film materials | PP, CPP, PVC, PS, EVA, PET, PVDC/PVC, OPP/CPP, etc. |
