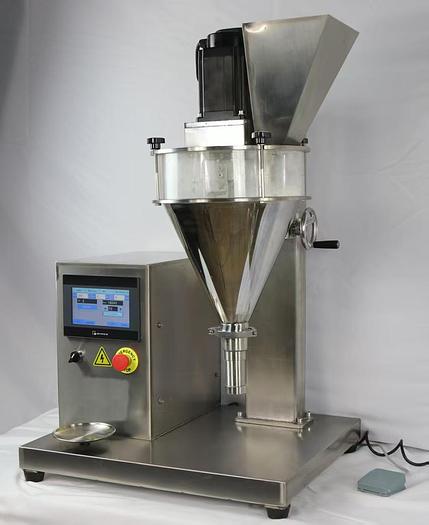

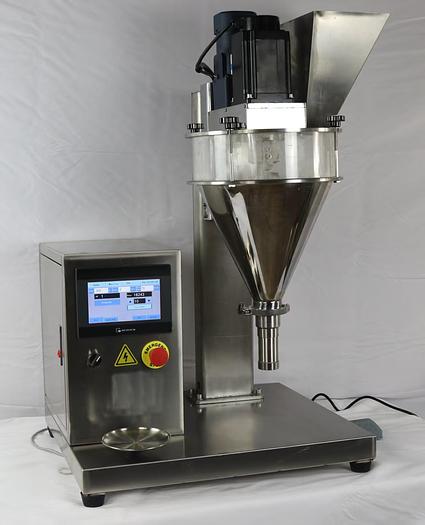

DF-B Small Powder filling machine

Main Purpose

• This packaging machine is suitable for the quantitative packaging of powdered materials such as pesticides, veterinary medicine, premixes, additives, milk powder, starch, spices, and enzymes.

Principle Features

1. The powder packing machine integrates mechanical, electrical, and optical components, controlled by a single-chip microcomputer. It features automatic functions such as quantitative measurement, automatic filling, and error correction for precise adjustments.
2. Rapid material handling using spiral motion and optical control technology.
3. Packaging machine with a wide range (0.02 oz to 10.58 oz), adjustable via the electronic scale keypad, and compatible with various material specifications through screw adjustments.
4. Wide range of applications for powdery or granular materials with a certain flowability.
5. High-precision stepper motor combined with electronic weighing technology.
6. Category for powder packaging in bags, cans, bottles, and other containers.
7. Automatic tracking errors caused by changes in material levels and proportions can be corrected.
8. Controlled by photoelectric switches, requiring only manual bagging, with clean bag openings and easy sealing.
9. Contact materials and parts are made of stainless steel for easy cleaning and to prevent cross-contamination.
10. It can be configured for the device, making it more user-friendly.

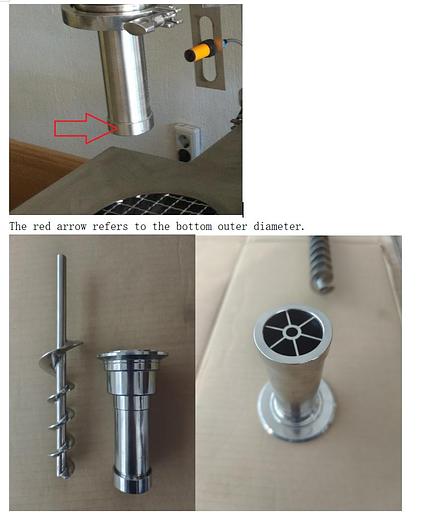

Based on the required filling volume and bottle size, select the appropriate feeder screw size

• Bottom anti-leak mesh outer diameter: 0.6 inches – Suitable for filling range: 0.1 to 0.7 oz
• Bottom anti-leak mesh outer diameter: 1 inch – Suitable for filling range: 0.2 to 7 oz
• Bottom anti-leak mesh outer diameter: 1.3 inches – Suitable for filling range: 0.2 to 17.6 oz
• Bottom anti-leak mesh outer diameter: 1.7 inches – Suitable for filling range: 0.7 to 35.3 oz

Note: The following items must be purchased separately.

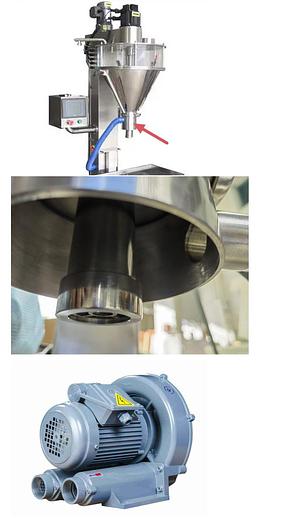

• Material discharge outlet with dust collection system: During material discharge, the system helps to capture and remove dust, preventing dust from dispersing into the air. Includes 1 blower.

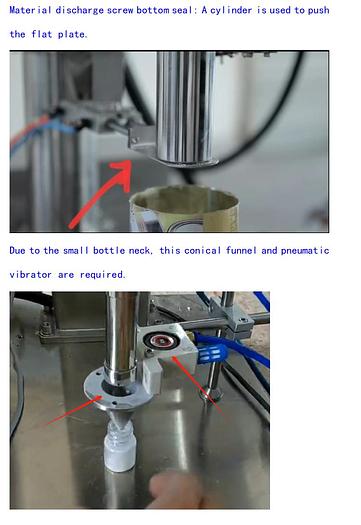

• Material discharge screw bottom seal: A cylinder is used to push the flat plate. (See image for reference).
• Due to the small bottle neck, a conical funnel and pneumatic vibrator are required.(See image for reference).
