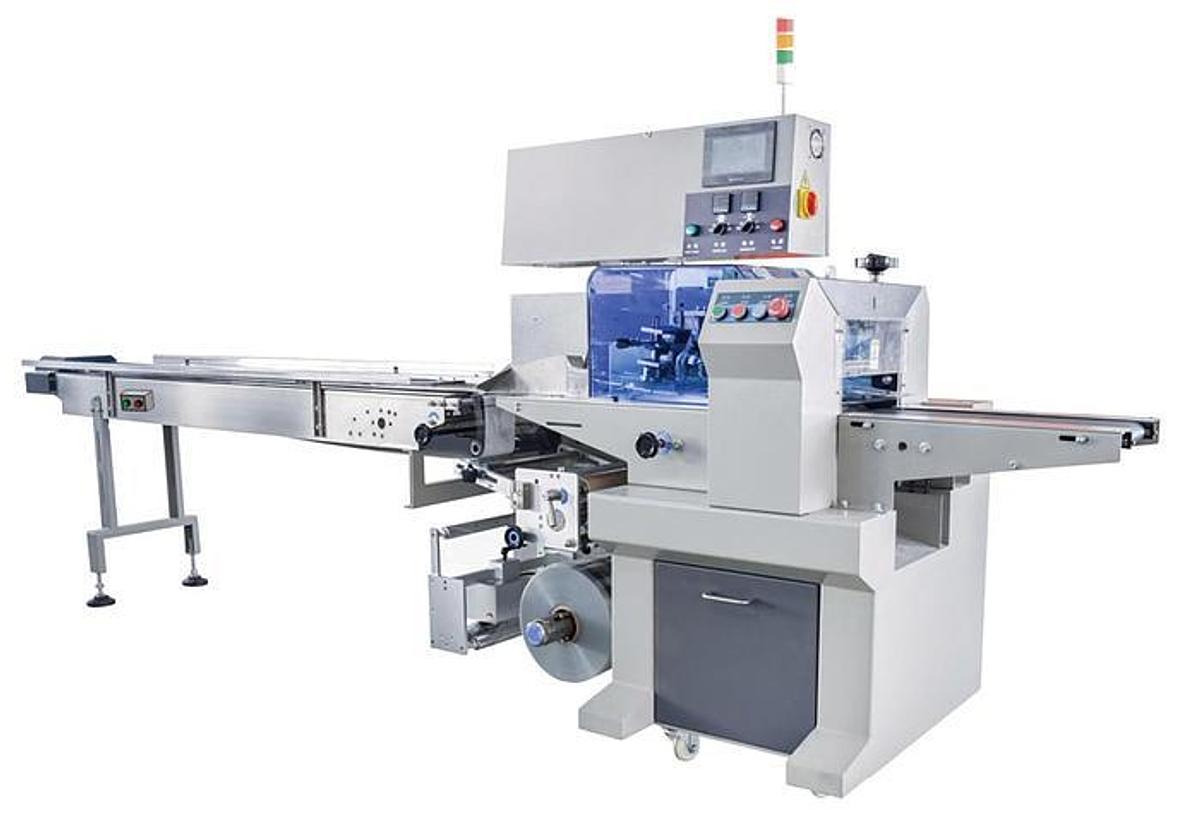

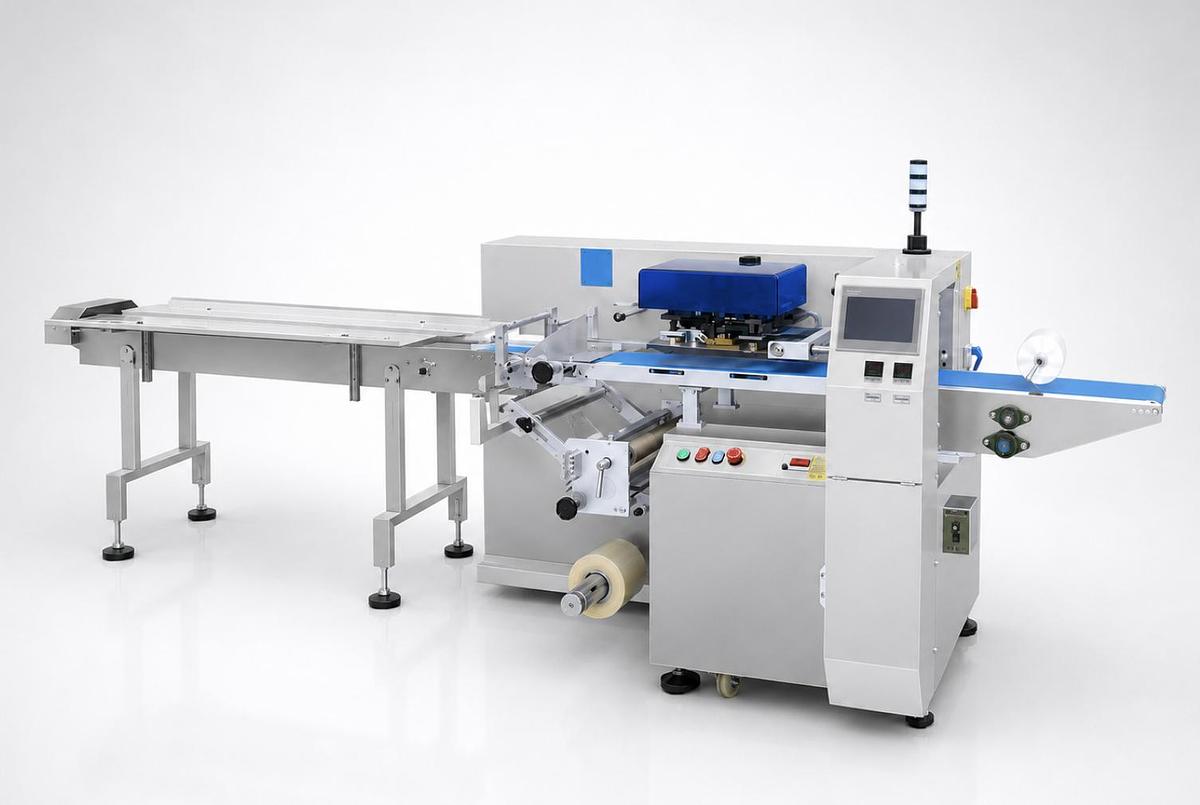

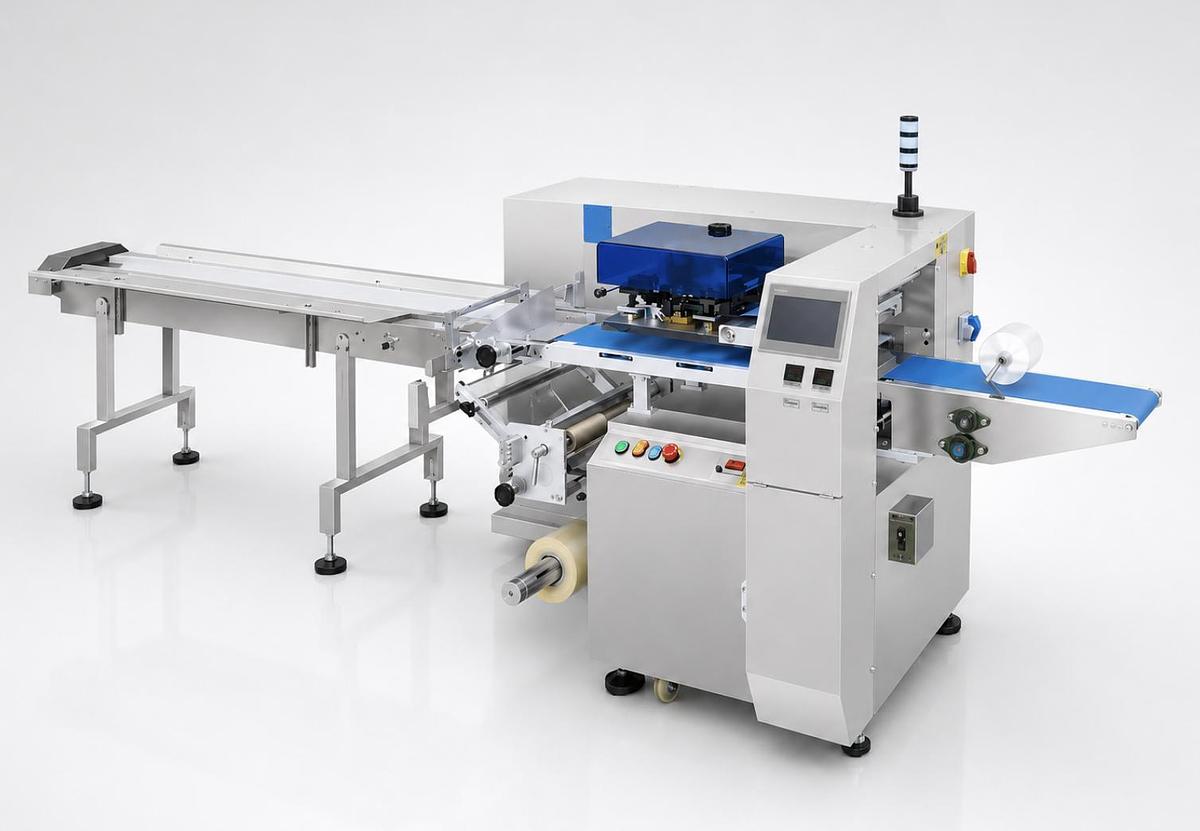

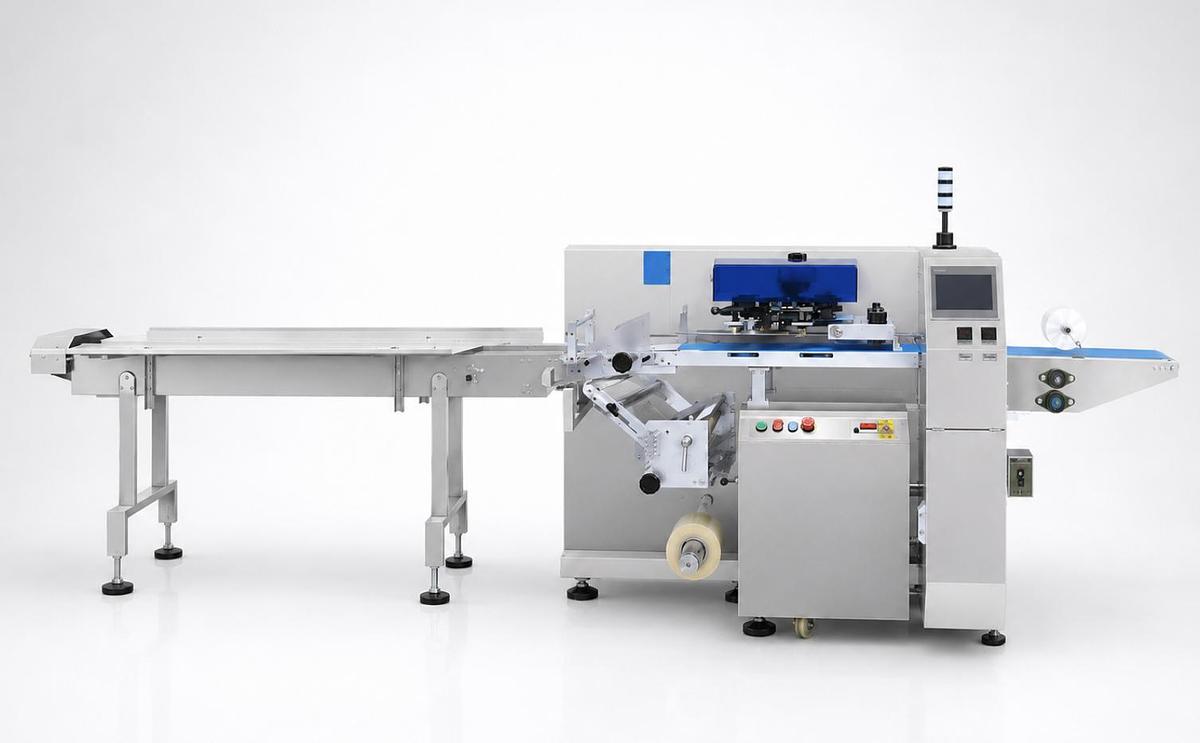

Three-Servo Down-Film Flow Wrapper VT-160X

Product Description

• Three Servo Motors and PLC Control: The machine automatically measures and adjusts the cutting position based on the error between the actual cut and color markers.
• Touch Screen Adjustment: The cutting position is easily adjusted through the touch screen by inputting the error value.
• Compact and User-Friendly Design: The machine structure is compact, with centralized controls for easy operation and quick adjustments.
• Software-Controlled Functions: All controls are managed by software, allowing for convenient function adjustments and technical upgrades.
• Ideal for Modern Manufacturers: This design is perfect for meeting the development needs of modern manufacturing processes.

Applications

• Food: Egg rolls, sausages, squid, bread, instant noodles, moon cakes, preserved fruits, soft candies, and more.
• Other Items: Handles, hinges, guide rails, daily necessities, stationery, and other hardware.

Features

• Simple Mechanical Structure:The servo system replaces the mechanical CAM, resulting in a simpler structure, smoother operation, and lower noise.
• Independent Motor Control:Transverse sealing, longitudinal sealing, and feeding are driven by separate servo motors, allowing for precise and flexible control.
• Direct Motor Transmission:Eliminates the need for complex CAM-based mechanical adjustments.
• Automatic Speed Synchronization:The system uses motion controllers for automatic tracking and synchronization of the cutter speed—no manual adjustment needed.
• Touchscreen Position Control:Material position can be easily adjusted by entering values on the touchscreen, making setup quick and user-friendly.
• Anti-Cutting Function:When cutting occurs, the cutter pauses while feeding and sealing continue. The machine operates normally when there’s no cutting issue—no need for manual restarts.
• Empty Pack Prevention:If material runs out, the machine suspends sealing operations and automatically resumes when material is available.
• Flexible Packing Length Adjustment:Changing material length is simple—just input parameters on the touchscreen without replacing mechanical parts.
• Formula Function:Supports multiple preset recipes. When an issue like cutting occurs, the machine adjusts without stopping or needing manual restarts.
• Low Operator Requirements:Designed for easy use, minimizing the need for specialized operator skills.
